Summery

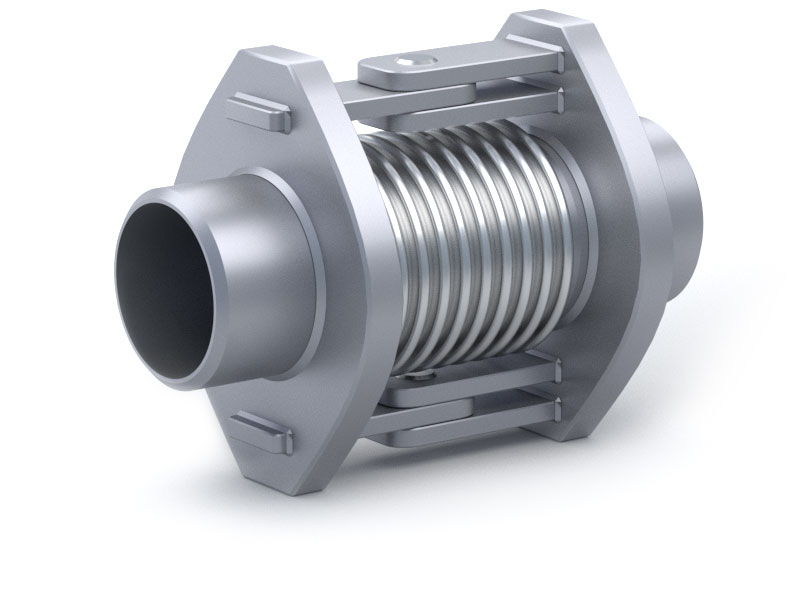

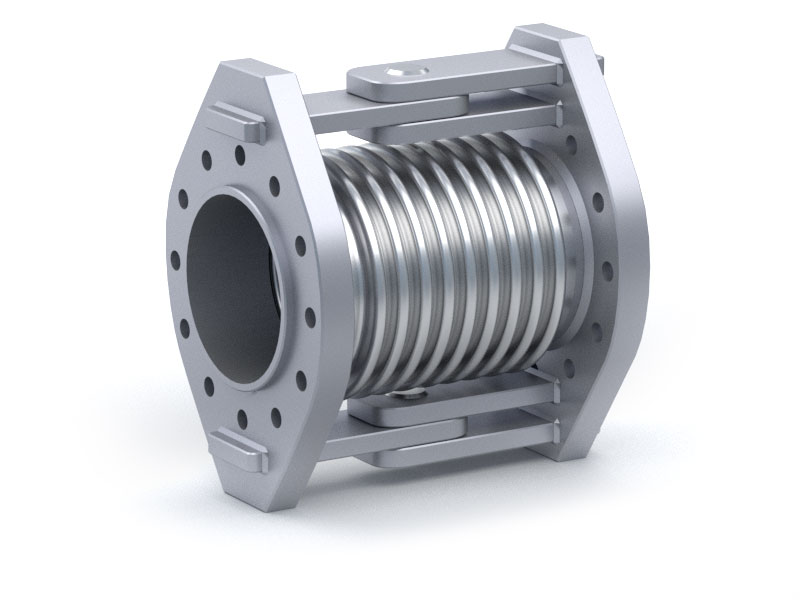

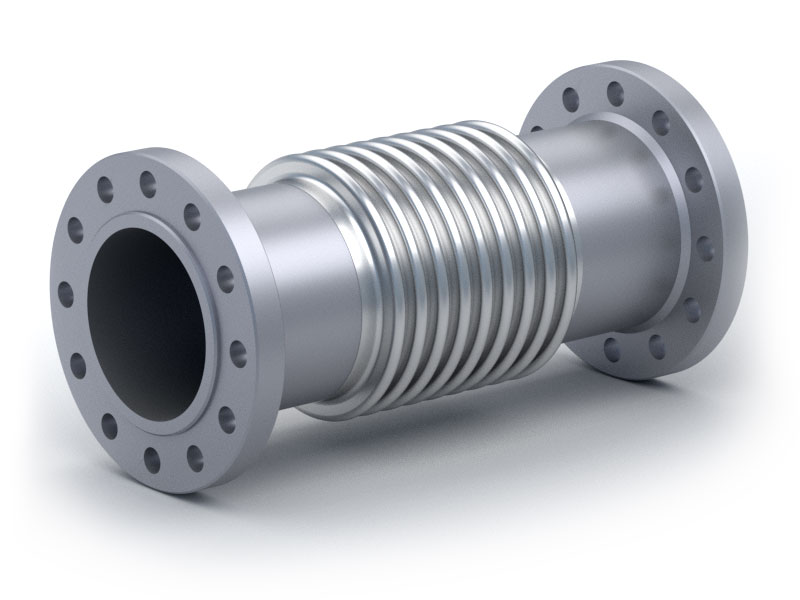

A single hinged expansion joint is designed to permit angular rotation in one plane, by the use of a pair of pins through hinge plates attached to the expansion joint ends.

Hinged joints are used in sets of two or three, to absorb pipe movement in one or more directions in a single plane piping system.

Expansion joint hinges are designed to transmit the full pressure thrust of the expansion joint. A hinged system permits large movements to be absorbed with minimal anchor forces.

These units do not allow axial movement however, some types of hinge systems can be provided with holes for the hinge pin that are slotted to allow limited axial displacement. These slotted hinge types cannot resist the pressure thrust forces and therefore proper anchorage must be provided.

Features

· Angular motion in one plane
· Withstand pressure thrust load
· Prevents torsion on bellows
· Low forces on piping system

Types of Movement

· Angular rotation in a single plane
· Allow limited axial displacement with slotted hole

Summery

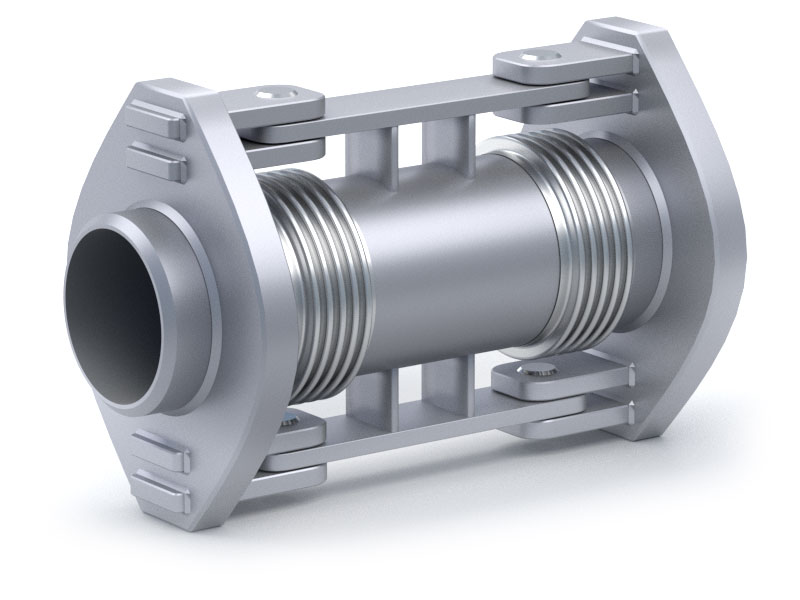

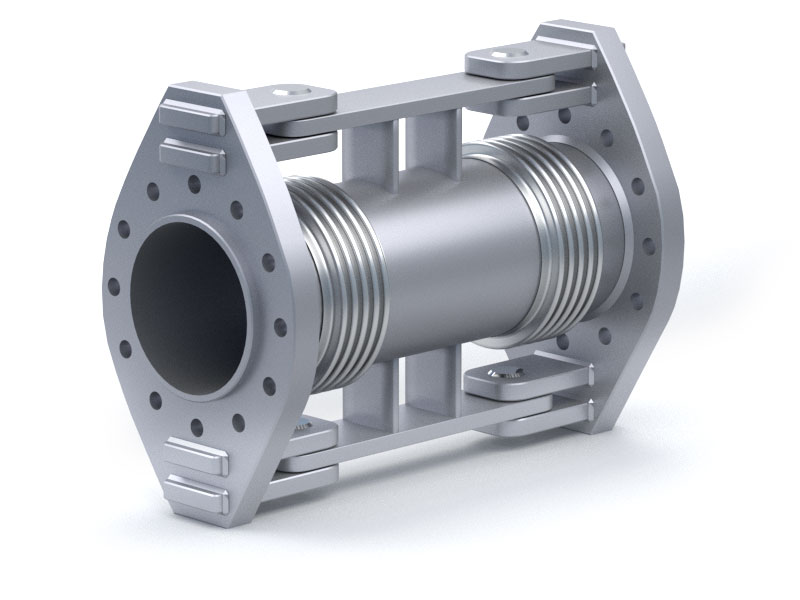

Double hinged expansion joint consists of two single hinged expansion joints connected with intermediate pipe with double hinge restraints to absorb pressure thrust, axial force due to the effect of pressure. Therefore, any expansion of the center pipe within the limits of the hinge bar will simply compress the bellows, and will not exert movement on the adjoining pipe. Application of this expansion joint is for compensating large lateral movement.

Features

· Angular motion in one plane
· Eliminates pressure thrust load
· Prevents torsion on bellows
· Low forces on piping system

Types of Movement

· Angular rotation in a single plane
