METAL EXPANSION JOINT SPECIAL DESIGN
Pantograph Type

H > Product > Metal Expansion Joint > Special Design > Pantograph Type

Summery

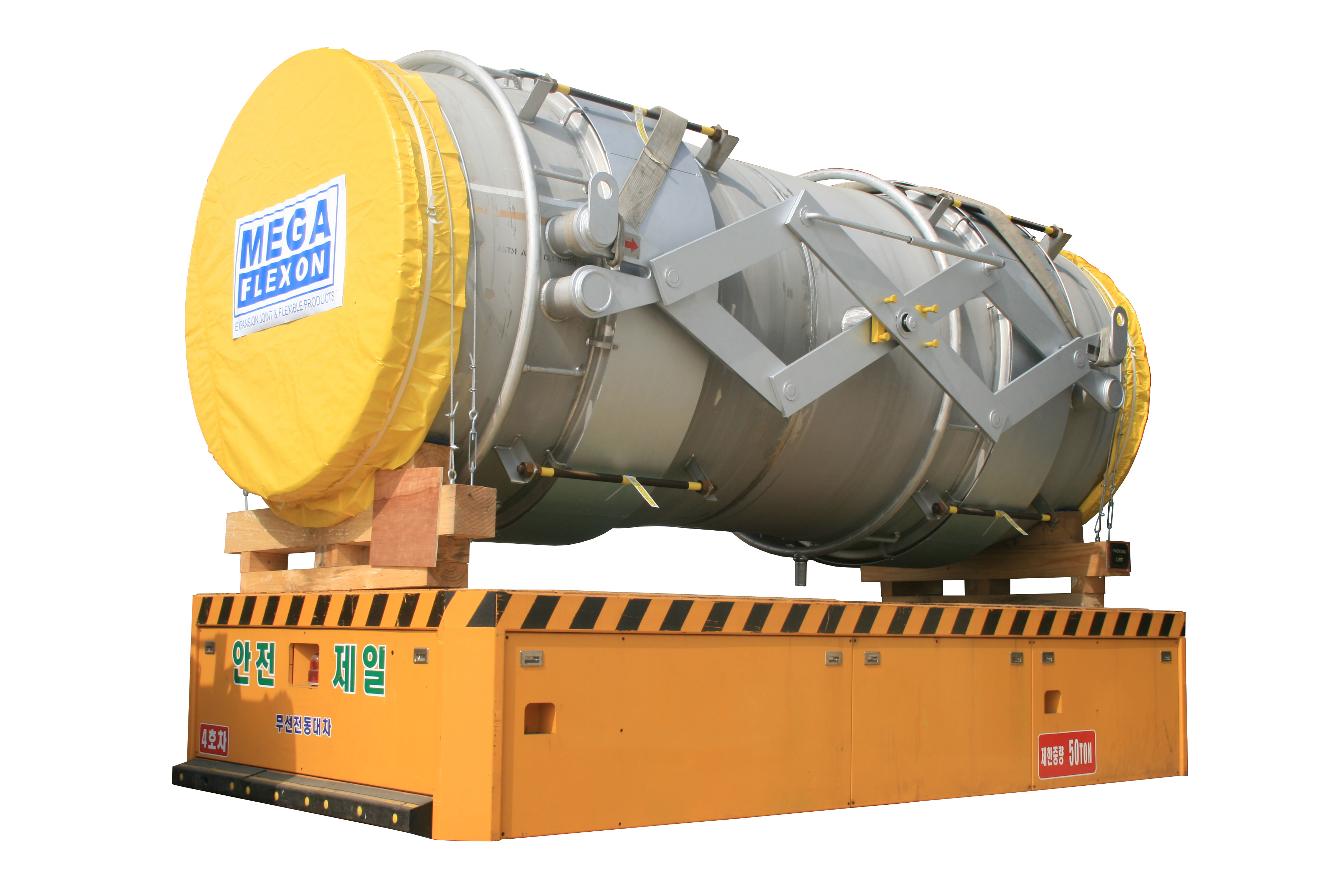

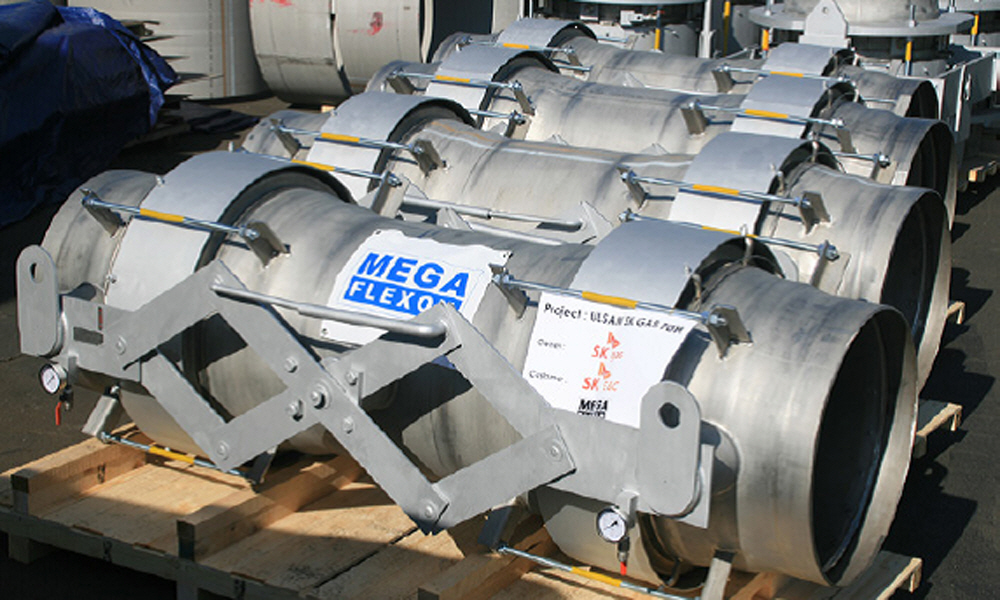

This type of expansion joint has a special pantograph linkage (a scissors-like device) that distributes and controls the movement equally between the two bellows of the universal joint throughout its full range of movement. Pantograph linkages are not designed to restrain pressure thrust.
